Transporting Machine on a Trailer

  1. H102533
    H102533-UN-28JUN11

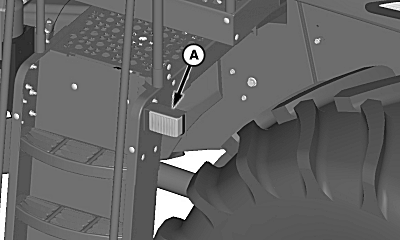

    A - Light Bracket

    See Driving Machine on Roads earlier in this section for additional information that MUST be done before transporting machine on a trailer.

    Remove header and outside dual wheels (if equipped).


  2. Drive machine on trailer and move the multi-function lever to neutral position.

  3. Dual Ladder Landing Configuration: Lower feeder house onto trailer to allow ladder landing to be swung to transport position.

  4. Shut OFF engine, set park brake and remove key.

  5. Fold radio antenna down and retain with hook (if equipped). If the hook is not available, retain the antenna to cab roof with tape.

  6. Single Tire Configuration: Disconnect wiring harness and remove light bracket (A).

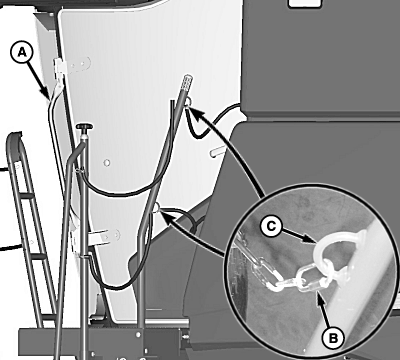

  7. H102527
    H102527-UN-28JUN11

    A - Handrail

    B - Chain Link

    C - Handrail Loops

    Single Tire Configuration: Remove and retain the cab handrail (A).


  8. Possible injury to you or others can occur from falling. Be careful when disconnecting safety chains and dismounting ladder landing.

    Assemble chain back onto existing loops on ladder handrail and loops on the grain tank. This shortens the chain and prevents it from damaging the composite panels.

    Single Tire Configuration: Disconnect and retain closure chain link (B) from handrail loops (C).

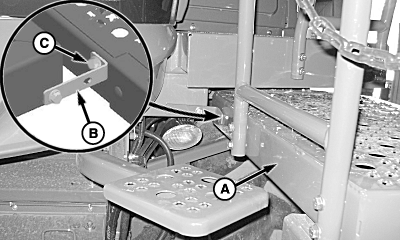

  9. H102532
    H102532-UN-28JUN11

    A - Ladder Landing

    B - Shipping Bracket

    C - Cap Screw

    Cab ladder must be swung past innermost detent position to allow ladder landing to contact shipping bracket.

    Single Tire Configuration: Swing ladder landing (A) to transport position until it contacts shipping bracket (B) and install cap screw (C).


  10. H102531
    H102531-UN-28JUN11

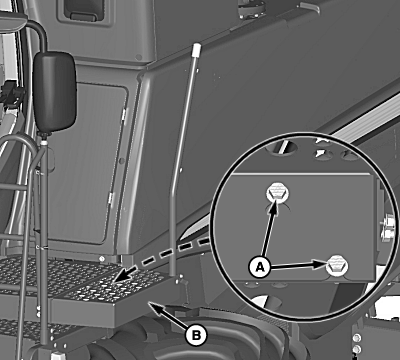

    A - Cap Screw (5 used)

    B - Ladder Landing

    Single Tire Configuration: Loosen cap screws (A) and remove ladder landing (B).


  11. H102501
    H102501-UN-27JUN11

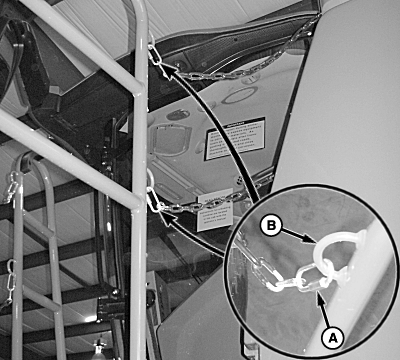

    A - Chain Link

    B - Handrail Loop

    Possible injury to you or others can occur from falling. Be careful when disconnecting safety chains and dismounting ladder landing.

    Assemble chain back onto existing loops on the grain tank. This shortens the chain and prevents it from damaging the composite panels.

    Dual Tire Configuration: Disconnect and retain closure chain link (A) from the handrail loop (B) on both sides of handrail.


  12. H102502
    H102502-UN-27JUN11

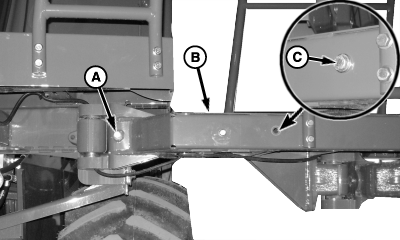

    A - Cap Screw

    B - Ladder Landing

    C - Cap Screw

    Dual Tire Configuration: Remove cap screw (A) and swing ladder landing (B) to transport position.


  13. Dual Tire Configuration: Install previously removed cap screw (C) in storage position as shown.

  14. H102503
    H102503-UN-28JUN11

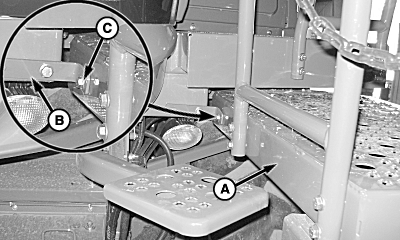

    A - Ladder Landing

    B - Shipping Bracket

    C - Cap Screw

    Feeder house MUST be lowered onto trailer to avoid contact between the ladder landing and the feeder house driveshaft when ladder is swung forward.

    Cab ladder must be swung past innermost detent position to allow ladder landing to contact shipping bracket.

    Dual Tire Configuration: Swing ladder landing (A) to transport position until it contacts shipping bracket (B) and install cap screw (C).

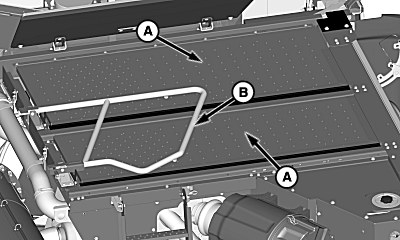

  15. H118330
    H118330-UN-04MAY16

    A - Engine Access Covers

    B - Handrail

    Lower engine access covers (A) and handrail (B) to lock covers into place.


  16. Tier 2/Stage II and Tier 3/Stage IIIA Engines: Tape muffler cap closed to prevent damage to turbocharger.

  17. TS249
    TS249-UN-23AUG88

    H106366
    H106366-UN-28JAN13

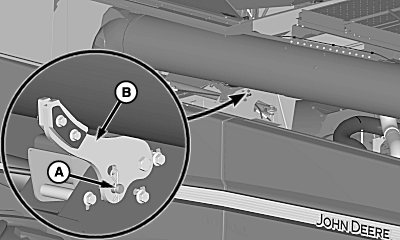

    A - Spring Pin and Pin

    B - Unloading Auger Lock Arm

    Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location when installing unloading auger retaining hardware. Do not attempt to access location from the engine platform.

    Unloading Auger Lock Arm:

    1. Remove and retain the spring pin and pin (A).

    2. Raise unloading auger lock arm (B) until holes align.

    3. Install previously removed pin and spring pin.


  18. H107241
    H107241-UN-18MAR13

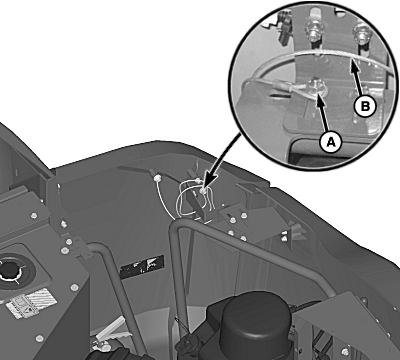

    A - Hardware

    B - Cable

    Loosen hardware (A) and remove cable (B) from storage position.

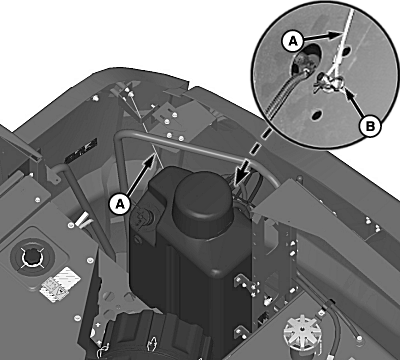

  19. H107242
    H107242-UN-18MAR13

    A - Cable

    B - Spring Pin

    Verify that cable is installed on inside portion of handrail.

    Adjust pin to different positions if cable does not reach.

    Install cable (A) over pin and retain with spring pin (B).

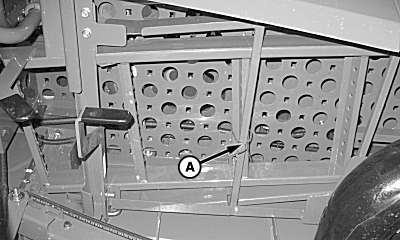

  20. H97171
    H97171-UN-29JUN10

    A - Platform

    Tie the ladder extension to platform (A) using wire.

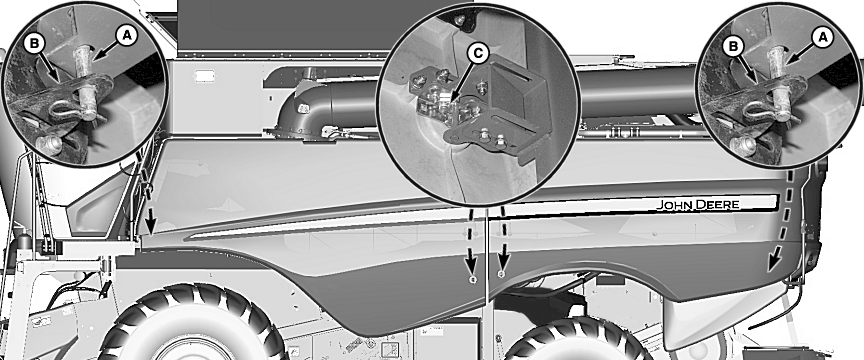

  21. H114482
    H114482-UN-08JUN15

    A - Pins

    B - Locking Plates

    C - Latches

    Install pins (A) through locking plates (B) and retain with spring pins at front and rear corners of the left-hand gull wing doors. Repeat on the opposite side of machine.


  22. Use wire to tie the gull wing doors at latches (C). Repeat on the opposite side of machine.

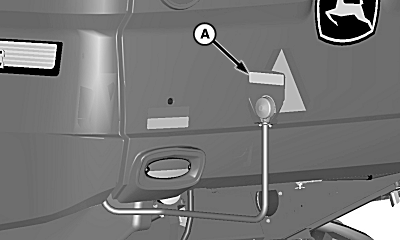

  23. H106224
    H106224-UN-16JAN13

    A - Hazard Lights

    Swing left-hand and right-hand hazard lights (A) rearward as shown.


  24. H106169
    H106169-UN-16JAN13

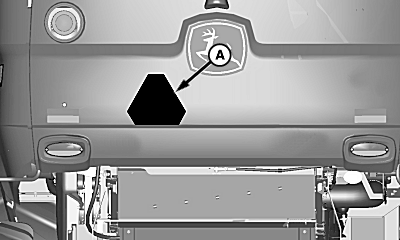

    A - Slow Moving Vehicle Emblem

    Cover up slow moving vehicle emblem (A).


  25. Fasten machine to trailer with chains.

    Fasten machine to trailer with chains (see Machine Tie Down Locations Decal on cab ladder for tie-down information).

OUO6075,0004355-19-20170411
