Batteries—Removing and Installing (Style A)

1.

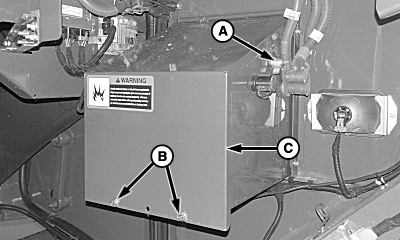

   H120105-UN-28NOV16

   A - Battery Disconnect Switch

   B - Cap Screws

   C - Cover

   Turn battery disconnect switch (A) counterclockwise to OFF position.

---




2. Remove cap screws (B) and cover (C) to access batteries.

3.

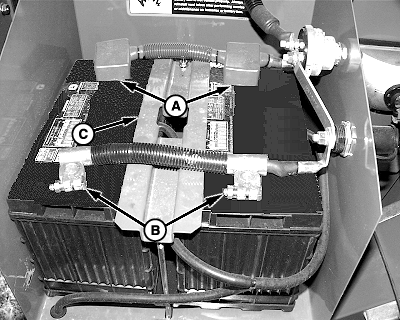

   H83385-UN-11JUL05

   A - Positive Cable

   B - Negative Cable

   C - Clamp

   Disconnect negative (-) cable (B) from batteries and negative jump-start post.

---




4. Disconnect positive (+) cable (A) and positive jump-start post.

5. Remove clamp (C) and battery vent tubes.

6. Clean batteries and battery mounting area.

7. Install batteries in the battery box and on the plastic tray.

8. Clean battery cables and posts and reconnect battery vent tubes.

9. Loosely install the clamp (C).

10. Attach positive (+) cable (A) and positive jump-start post.

11. Attach negative (-) cable (B) and negative jump-start post.

12. Tighten battery clamp.

13. Install cover and retain with previously removed cap screws.

14. Turn battery disconnect switch clockwise to ON position.
