Batteries—Removing and Installing (Style B)

1.

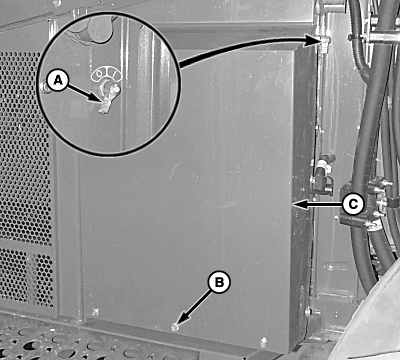

   H120106-UN-28NOV16

   A - Battery Disconnect Switch

   B - Cap Screws (9 Used)

   C - Cover

   Turn battery disconnect switch (A) counterclockwise to OFF position.

---




2. Remove cap screws (B) and cover (C) to access batteries.

3.

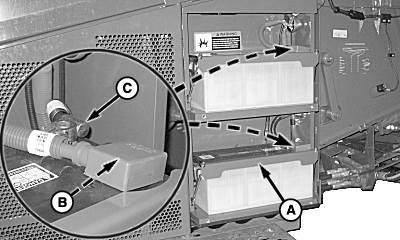

   H96583-UN-30JUN10

   A - Clamp

   B - Positive Cable

   C - Negative Cable

   Remove clamp (A) and battery vent tubes.

---




4. Disconnect positive (+) cable (B) and negative (-) cable (C).

5. Clean batteries and battery mounting area.

6. Install batteries in the battery box.

7. Clean battery cables, posts, and reconnect battery vent tubes.

8. Attach positive (+) cable and negative (-) cable.

9. Install and tighten the battery clamp.

10. Install cover and retain with previously removed cap screws.

11. Turn battery disconnect switch clockwise to ON position.
