Light Emitting Diode (LED) Lights (Optional)—Replacing

H119680
H119680-UN-20OCT16

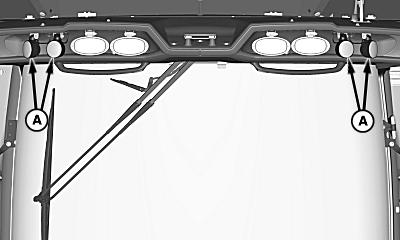

A - Light Emitting Diode (LED) Lights

Raise feeder house and lower safety stop before replacing or adjusting headlights.

Light Emitting Diode (LED) lights (A) are on both sides of cab as shown.

H119681
H119681-UN-20OCT16

A - Cap Screw and Washer (2 used)

B - Cap Screw and Washer (19 used)

C - Cab Roof

D - Antenna

Remove GreenStar™ position receiver if equipped.

Remove cap screws and washers (A and B).

Lift front left-hand side of cab roof (C) and disconnect the antenna (D).

Remove front portion of cab roof.

H119701
H119701-UN-25OCT16

H119683
H119683-UN-20OCT16

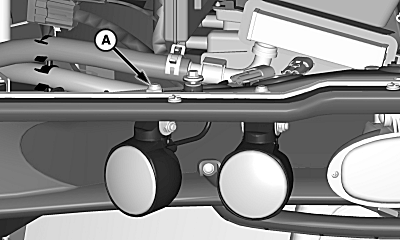

A - Cap Screw and Nut

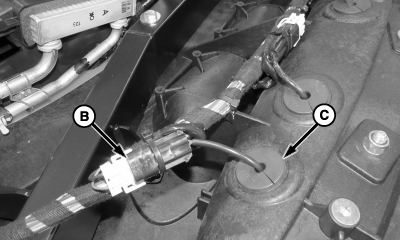

B - Connector

C - Grommet

Remove cap screw and nut (A).

Unplug wiring harness connector (B) and remove grommet (C).

Remove and discard light assembly.

Install light assembly in reverse order.

Tighten cap screw and nut to specification.
NutTorque30 N·m (22 lb·ft)

Rotate light housing to previous operating position.

Repeat on remaining lights as needed.

H119681
H119681-UN-20OCT16

A - Cap Screw and Washer (2 used)

B - Cap Screw and Washer (19 used)

C - Cab Roof

D - Antenna

Connect antenna (D) and install the cab roof (C).

Install cap screws (B) and tighten to specification.
Cap ScrewsTorque6 N·m (53 lb·in)

Install cap screws (A) and tighten to specification.
Cap ScrewsTorque10 N·m (89 lb·in)

GreenStar is a trademark of Deere & Company

OUO6075,000435E-19-20170130
