Light Emitting Diode (LED) Lights (Optional)—Adjusting

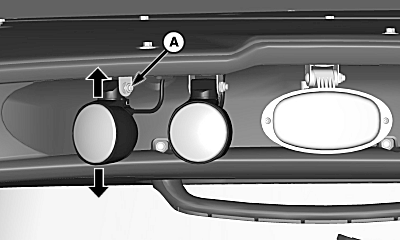

H119703-UN-26OCT16
A - Cap Screw
Raise feeder house and lower safety stop before replacing or adjusting headlights.Light assemblies can be adjusted as needed to achieve correct lighting angles.
Vertical Adjustment
Loosen cap screw (A). Rotate light assembly up or down to desired position and tighten cap screw. Repeat on remaining lights as needed.
Horizontal Adjustment

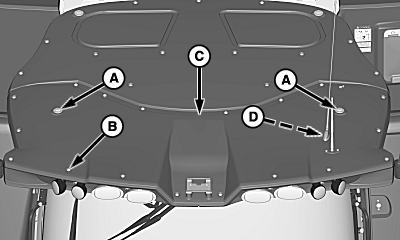

H119681-UN-20OCT16
A - Cap Screw and Washer (2 used)
B - Cap Screw and Washer (19 used)
C - Cab Roof
D - Antenna
Remove GreenStar™ position receiver if equipped.Remove cap screws and washers (A and B).
Lift front left-hand side of cab roof (C) and disconnect the antenna (D).
Remove front portion of cab roof.

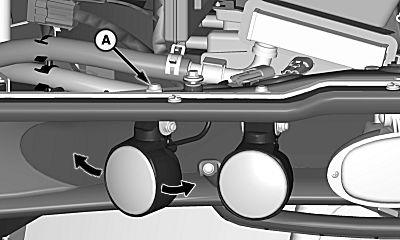

H119704-UN-26OCT16
A - Cap Screw and Nut
Loosen cap screw and nut (A).Rotate light assembly left or right to desired position.
Tighten cap screw and nut to specification.
| Nut | Torque | 30 N·m (22 lb·ft) |
Repeat on remaining lights as needed.
H119681-UN-20OCT16
A - Cap Screw and Washer (2 used)
B - Cap Screw and Washer (19 used)
C - Cab Roof
D - Antenna
Connect antenna (D) and install the cab roof (C).Install cap screws (B) and tighten to specification.
| Cap Screws | Torque | 6 N·m (53 lb·in) |
| Cap Screws | Torque | 10 N·m (89 lb·in) |
|
GreenStar is a trademark of Deere & Company |
OUO6075,000435F-19-20170130 |
