Grain Tank Drain Holes

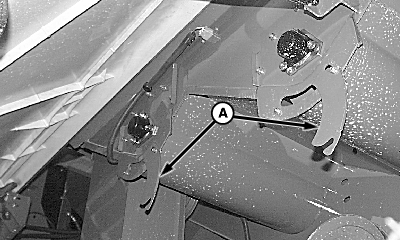

H80946-UN-27MAY04
A - Drain Hole Doors
Grain tank drain hole doors (A) are on the right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.Loosen cap screws and slide doors away from drain holes.
|
OUO6075,0004360-19-20161007 |
