Grain Tank Sample Trough

H96883
H96883-UN-14JUN10

H96884
H96884-UN-14JUN10

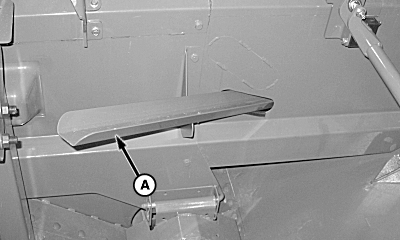

A - Sample Trough

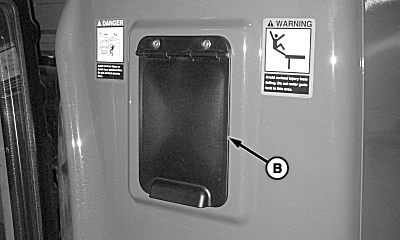

B - Door

Grain tank sample trough (A) allows operator to take a sample of the harvested crop from the loading auger without entering the grain tank.

With machine full of the harvested crop, move multi-function lever to neutral position and set the park brake.

Disengage header, but leave separator engaged.

Do not have a second person check for a grain tank sample.

Open door (B). Lower end of the grain tank trough spills off a sample of the harvested crop.

OUO6075,0004361-19-20170110
