Grain Tank Loading Auger Deflector

H96890
H96890-UN-14JUN10

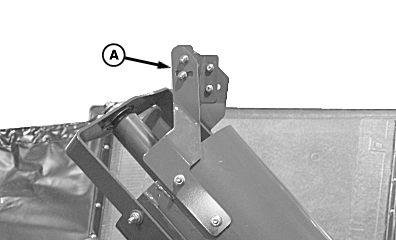

A - Deflector

Shut OFF engine, set park brake and remove key.

Position deflector (A) as needed.

Counterclockwise rotation:

  • Windy conditions when harvesting crops like grass seed or rape.
  • Corn—Grain tank fills to the left and to the rear.

Clockwise rotation:

  • Grain—Grain tank fills to the right and to the front.

OUO6075,0004362-19-20161007
