Unloading Auger Drive Belt—Replacing (Style A)

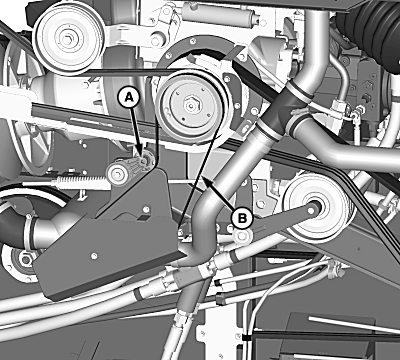

H108390
H108390-UN-25JUN13

A - Tensioner Arm

B - Engine Debris Management Belt (If Equipped)

Shut OFF engine, set park brake and remove key.

Verify that unloading auger hydraulic cylinder is disengaged and retracted.

Use breaker bar to relieve tension from the tensioner arm (A) to remove engine debris management belt (B).

H105391
H105391-UN-09MAY12

A - Tensioner

Loosen tensioner (A) on the unloading auger drive chain.

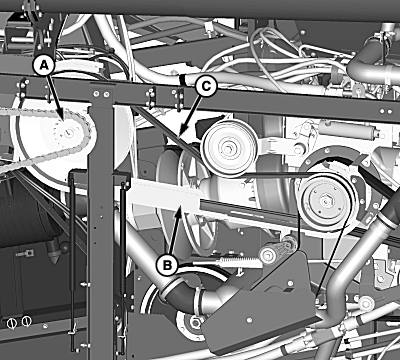

H108394
H108394-UN-25JUN13

A - Sprocket

B - Belt Trap

C - Belts

Remove chain from sprocket (A).

Remove cap screws from the belt trap (B).

Remove belt trap and belts (C).

Install replacement belts and previously removed belt trap.

Use breaker bar to relieve tension from the tensioner arm to install engine debris management belt.

Install shield and retain with cap screws.

Install drive chain and adjust the tensioner until washer aligns with end of gauge.

OUO6075,0004365-19-20170126
