Unloading Auger Drive Belt—Replacing (Style B)

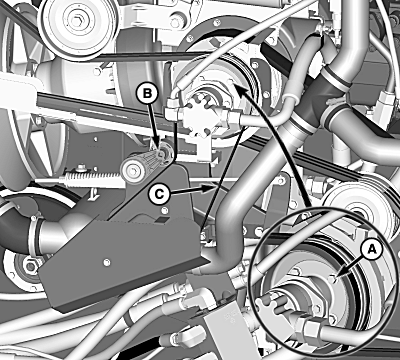

H108393
H108393-UN-25JUN13

A - Cap Screws

B - Tensioner Arm

C - Engine Debris Management Belt (If Equipped)

Shut OFF engine, set park brake and remove key.

Verify that unloading auger hydraulic cylinder is disengaged and retracted.

Remove cap screws (A) and support pump assembly out of the way.

Use breaker bar to relieve tension from the tensioner arm (B) to remove engine debris management belt (C).

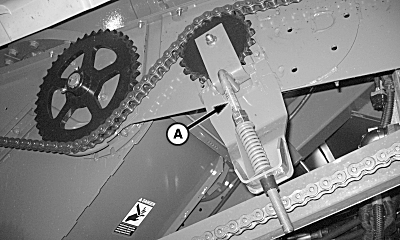

H105391
H105391-UN-09MAY12

A - Tensioner

Loosen tensioner (A) on the unloading auger drive chain.

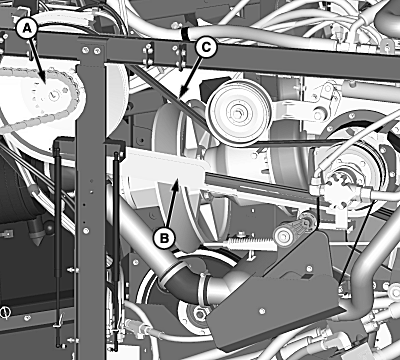

H108395
H108395-UN-25JUN13

A - Sprocket

B - Belt Trap

C - Belts

Remove chain from sprocket (A).

Remove cap screws from the belt trap (B).

Remove belt trap and belts (C).

Install replacement belts and previously removed belt trap.

Install pump assembly and tighten cap screws to specification.
Cap ScrewsTorque80 N·m (59 lb·ft)

Use breaker bar to relieve tension from the tensioner arm to install engine debris management belt.

Install shield and retain with cap screws.

Install drive chain and adjust the tensioner until washer aligns with end of gauge.

OUO6075,0004366-19-20170126
