Unloading Auger Cradle Support—Adjusting

1.

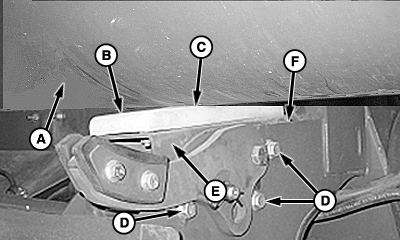

   H106291-UN-19DEC12

   A - Unloading Auger

   B - Wear Plate

   C - Location

   D - Cap Screws

   E - Cradle Support

   F - Grain Tank Plate

   Shut OFF engine, set park brake and remove key.

   Swing unloading auger to storage or transport position.

---




2. No gap should exist between the unloading auger (A) and the wear plate (B) at location (C) when adjusted properly.

   If a gap exists between the unloading auger and the wear plate, loosen cap screws (D) and adjust cradle support (E) vertically until wear plate contacts lower surface of unloading auger.

3. Top surface of cradle support (E) MUST be parallel with top of the grain tank plate (F).

   Tighten cap screws when cradle is adjusted.
