Unloading Auger Position—Adjusting

1.


   H106293-UN-07DEC12


   H106322-UN-11DEC12

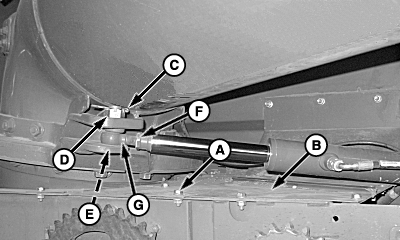

   A - Cap Screws (8 Used)

   B - Cover

   C - Cotter Pin

   D - Nut and Washer

   E - Pin

   F - Nut

   G - Eyebolt

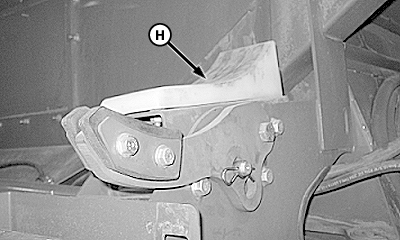

   H - Wear Plate

   Shut OFF engine, set park brake and remove key.

   Unloading auger MUST contact wear plate when adjusted properly.

   Remove cotter pin (C), nut, and washer (D) and pin (E).

---




2. Loosen nut (F) and adjust eyebolt (G) until unloading auger lightly contacts wear plate surface (H).

3. Install previously removed hardware and cover after unloading auger is adjusted.
