Chopper Jackshaft Belt—Adjusting

H108280-UN-18JUN13

Style A

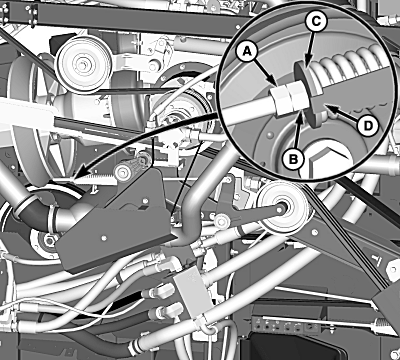

H108281-UN-18JUN13

Style B

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Chopper jackshaft belt is located on the left-hand side above the chopper.

Loosen lock nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
