Spreader—Windrow Position

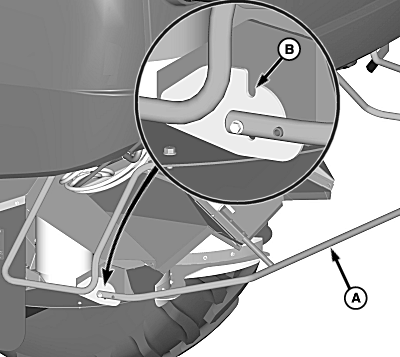

H98188
H98188-UN-23SEP10

A - Spreader Hoop

B - Notch

Shut OFF engine, set park brake and remove key. Before performing service or maintenance on the raised spreader, fully insert lockout pin into place.

Spreader hoop MUST always be in the "down" position as shown when operating.

Spreader can be rotated upward to allow material to discharge into a windrow pattern.

Raise spreader hoop (A) until it aligns with notch (B) when accessing or raising spreader to windrow position.

H98189
H98189-UN-23SEP10

A - Quick-Lock Pin

B - Pin

C - Support Tube

Remove quick-lock pin (A) from pin (B) and lower support tube (C).

Place pin back into storage position and retain with quick-lock pin.

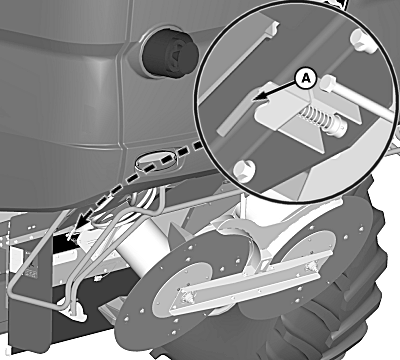

H98190
H98190-UN-23SEP10

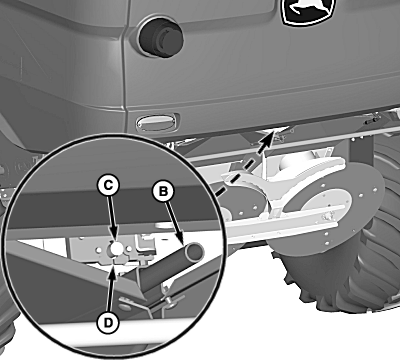

H98191
H98191-UN-23SEP10

A - Pin

B - Handle

C - Pin

D - Latch Assembly

Pull pin (A) to fully raise the spreader.

Raise spreader with handle (B) until the pin (C) fully engages with latch assembly (D).

Set Spreader speed to zero. See Residue Management Application Help or Operator’s Station Help for further information.

OUO6075,000436F-19-20161219
