Spreader—Lowering

H98192
H98192-UN-23SEP10

H98193
H98193-UN-23SEP10

A - Pin

B - Pin

C - Latch Assembly

D - Handle

Shut OFF engine, set park brake and remove key.

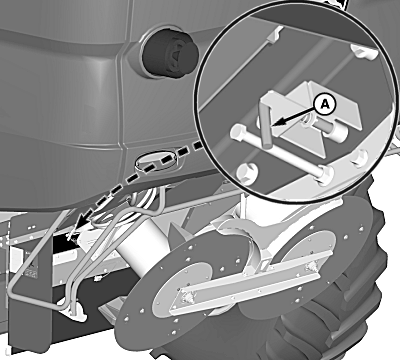

Rotate and place pin (A) onto the bracket to unlock the spreader.

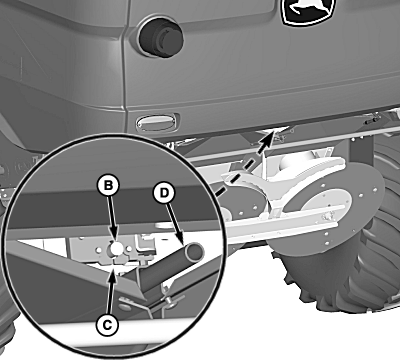

Release pin (B) from latch assembly (C) and lower spreader with handle (D).

H98189
H98189-UN-23SEP10

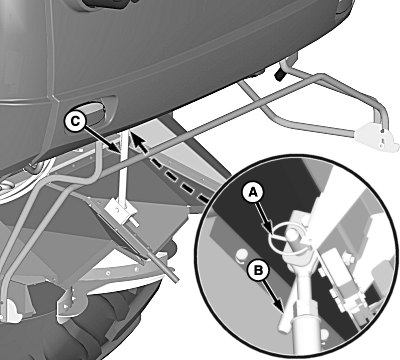

A - Quick-Lock Pin

B - Pin

C - Support Tube

Raise support tube (C) until it aligns with hole and retain with pin (B) and quick-lock pin (A).

Increase spreader speed until desired spread width is reached. See Residue Management Application Help or Operator’s Station Help for further information.
