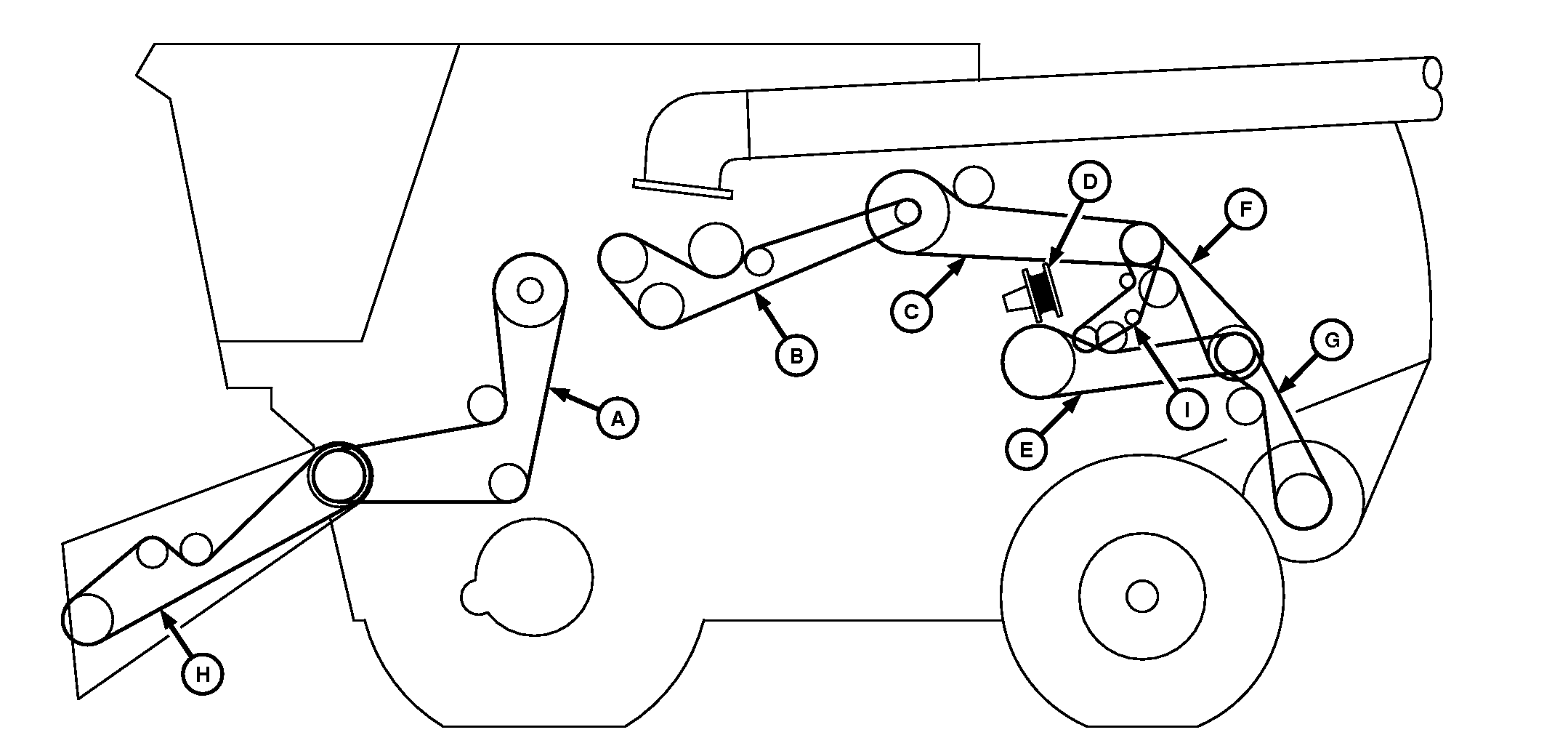

Drive Belts—Left-Hand

H107018-UN-25FEB13

Style A
A	Header and Reel Pump Standard/High Capacity Belt	F	Countershaft, Discharge Beater and Chopper Belt
B	Unloading Auger System, #60 Roller Chain	G	Straw Chopper Belts
C	Unloading Auger System Belt	H	Fixed Speed Feeder House Drive Belt Feeder House Variable Drive Standard/High Capacity Belt
D	Separator Variable Drive Belt	I	Engine Debris Management Belt (Final Tier 4/Stage IV)
E	Discharge Beater Belt (Non-Rice Machine) Discharge Beater Belts (Rice Machine)
Style B
A	Header and Reel Pump Standard/High Capacity Belt or CommandTouch™ Multi-Speed Feeder House Drive Belt (Option)
B	Unloading Auger System, #60 Roller Chain (10 572 L (300 bu) Grain Tank) Unloading Auger System, #80 Roller Chain (14 096 L (400 bu) Grain Tank)
C	Unloading Auger System Belt
D	Separator Variable Drive Belt
E	Discharge Beater Belts
F	Countershaft, Discharge Beater and Chopper Belt
G	Straw Chopper Belts
H	Fixed Speed Feeder House Drive Belt Feeder House Variable Drive Standard/High Capacity Belt or CommandTouch™ Multi-Speed Feeder House Drive Belt (Option)
I	Engine Debris Management Belt (Final Tier 4/Stage IV)
