Tailings System Drive Chain—Adjusting (Style B)

H105438
H105438-UN-17MAY12

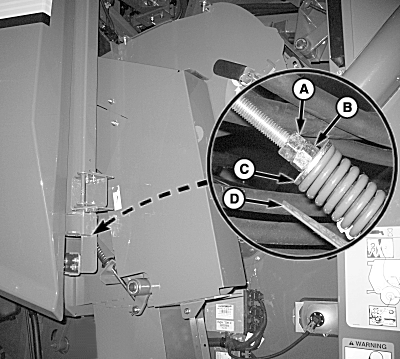

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set park brake and remove key.

Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
