Tailings System Drive Chain—Replacing (Style B)

H105439
H105439-UN-17MAY12

A - Nuts

B - Shield

C - Shields

Shut OFF engine, set park brake and remove key.

Loosen nuts (A) and remove shields (B and C).

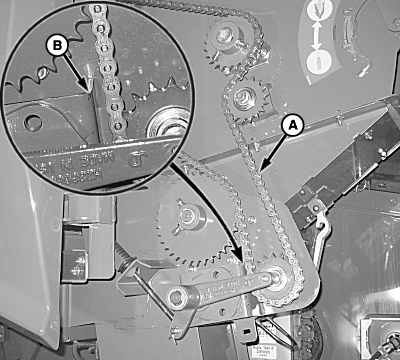

H97963
H97963-UN-30JUN11

A - Chain

B - Bracket

Replace if fully tensioned chain (A) contacts or is less than 3 mm (1/8 in) away from bracket (B).

Install replacement chain and adjust the tensioner until washer is positioned between end of gauge and bottom of step.

Install previously removed shields.

OUO6075,000437A-19-20170126
