Tailings Elevator Drive Belt—Adjusting (Style A)

H62186

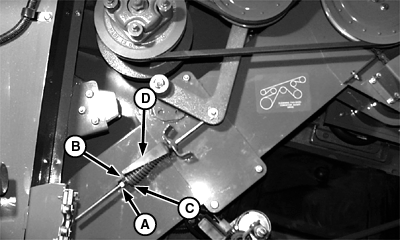

H62186-UN-13JAN00

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set park brake and remove key.

Loosen lock nut (A).

Tighten nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
