Tailings System Elevator Paddles

H62187
H62187-UN-13JAN00

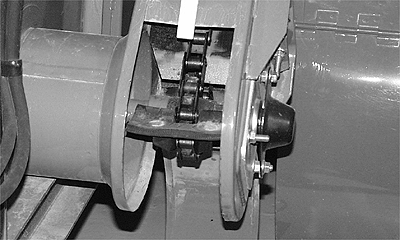

Style A

H97055
H97055-UN-22JUN10

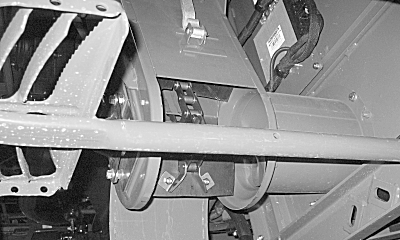

Style B

Shut OFF engine, set park brake and remove key.

Check elevator chain occasionally for worn or missing paddles.

In muddy conditions, one steel paddle may be installed in the elevator chain to act as a wiper.

OUO6075,0004382-19-20161010
