Clean Grain Elevator Belt—Replacing

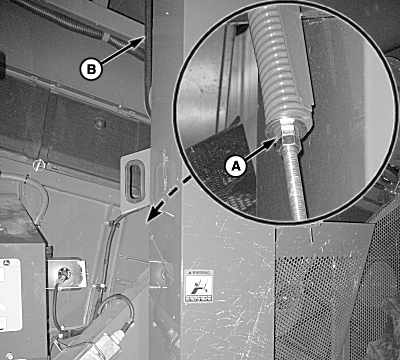

H97128
H97128-UN-27OCT10

Style A

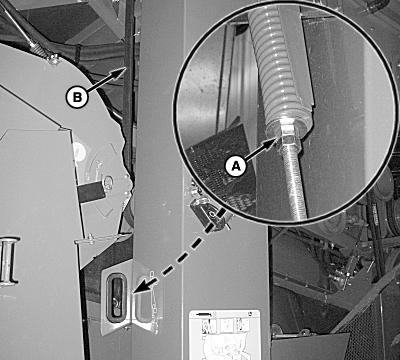

H97033
H97033-UN-22JUN10

Style B

A - Nuts

B - Clean Grain Elevator Belt

Shut OFF engine, set park brake and remove key.

Loosen nuts (A) to relieve tension on the clean grain elevator belt (B).

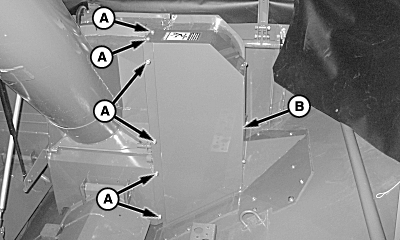

H97032
H97032-UN-22JUN10

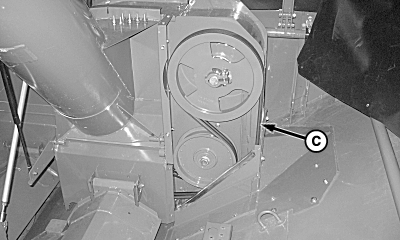

H97034
H97034-UN-22JUN10

A - Cap Screws

B - Cover

C - Clean Grain Elevator Belt

Remove cap screws (A) and cover (B).

Remove clean grain elevator belt (C) from pulleys.

Install replacement belt and adjust the tensioner until washer is positioned between end of gauge and bottom of step. Tighten lock nut.

Install previously removed cover and retain with cap screws.
