Clean Grain Elevator Belt—Adjusting

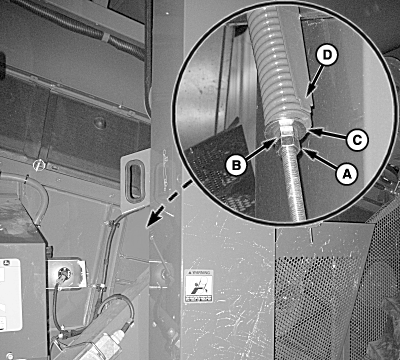

H97127
H97127-UN-27OCT10

Style A

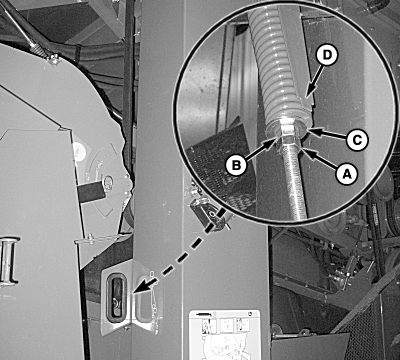

H97030
H97030-UN-22JUN10

Style B

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set park brake and remove key.

Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0004385-19-20161010
