Overshot Beater (If Equipped)—Wing Replacing

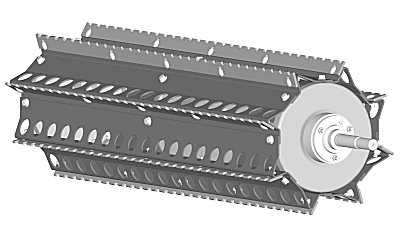

H98552-UN-12OCT10

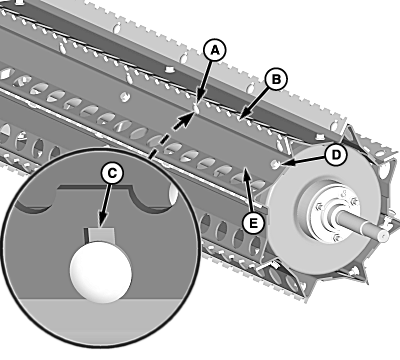

H98553-UN-14OCT10

A - Round Head Bolts

B - Overshot Beater Wear Strip

C - Notch

D - Cap Screws

E - Overshot Beater Wings

Wings can be reversed for additional wear.

Overshot beater wings and wear strips can be replaced without removing the overshot beater. Replace overshot beater wings in sets of two and opposite of each other to maintain proper balance.

If the overshot beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace overshot beater wear strips (B) as required.

Adjust overshot beater wear strips outward until at the end of notch (C) as shown.

Tighten round head bolts to specification.

Overshot Beater Wear Strip Round Head Bolts	Torque	79 N·m (58 lb·ft)

Remove cap screws (D) and replace overshot beater wings (E) as required. Tighten cap screws to specification.

Overshot Beater Wing Cap Screws	Torque	79 N·m (58 lb·ft)
