Overshot Beater Belt (If Equipped)—Adjusting

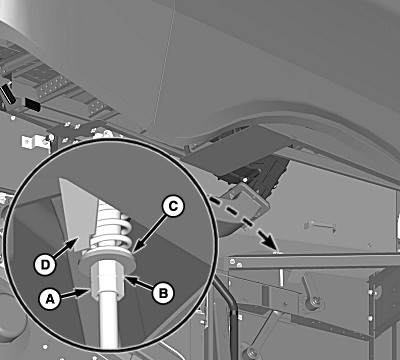

H114991
H114991-UN-08JUL15

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set park brake and remove key.

Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,000438D-19-20161012
