Discharge Beater Belt—Adjusting

H108263
H108263-UN-18JUN13

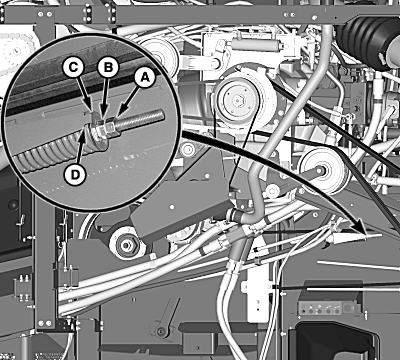

Style A

H108264
H108264-UN-18JUN13

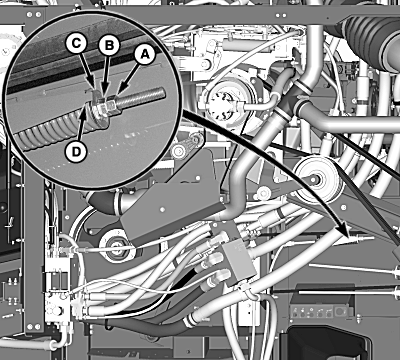

Style B

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set park brake and remove key.

Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,000438F-19-20161010
