Separator Top Cover Vanes (If Equipped)

H97060
H97060-UN-22JUN10

A - Separator Top Cover Vanes

B - Advanced Position

C - Standard Position

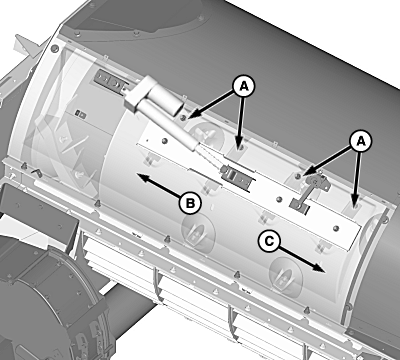

Separator top cover vanes (A) are located on the right-hand side of the machine behind the clean grain loading auger.

Separator top cover vanes can be be adjusted to two different positions through software.

  • Running separator vanes in the advanced position may increase grain losses in certain crop and conditions. Crop dwell time in separator is reduced to improve straw quality.
    (B)—Advanced Position
  • (C)—Standard Position

See Residue Management Application Help or Operator's Station Help for further information.
