Left-Hand Side Shields

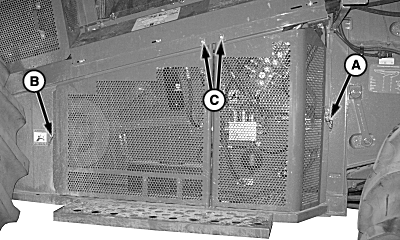

Side Shields (Style A)
H105327-UN-01MAY12
A - Quick-Lock Pin
B - Quick-Lock Pin
C - Cap Screws
Shut OFF engine, set park brake and remove key.Remove quick-lock pin (A and B) to open shields.
Remove cap screws (C) and lift shields to remove.

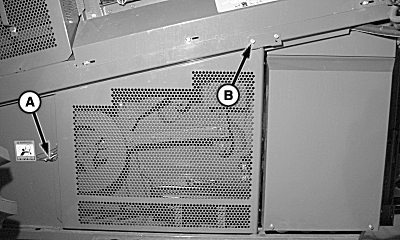

Side Shields (Style B)
H96802-UN-09JUN10
A - Quick-Lock Pin
B - Cap Screws
Shut OFF engine, set park brake and remove key.Remove quick-lock pin (A) to open shield.
Remove cap screws (B) and lift shield to remove.
Fan Shield
H96803-UN-09JUN10
A - Quick-Lock Pin
B - Latch
C - Shield

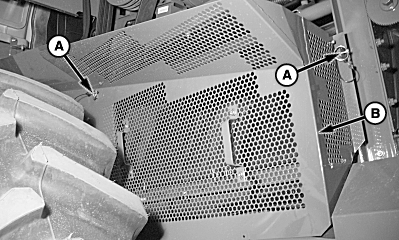

Remove quick-lock pin (A) and turn latch (B) to remove shield (C).Upper Separator Shield
H96804-UN-09JUN10
A - Quick-Lock Pins
B - Shield

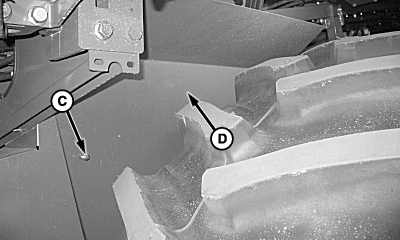

Remove quick-lock pins (A) and remove shield (B).Front Separator Shield
H96804-UN-09JUN10
H96805-UN-09JUN10
A - Quick-Lock Pins
B - Shield
C - Cap Screw
D - Shield
Remove quick-lock pins (A) and remove shield (B).Remove cap screw (C) and push front separator shield (D) rearward to remove.
|
