Handrails and Right-Hand Landing Access

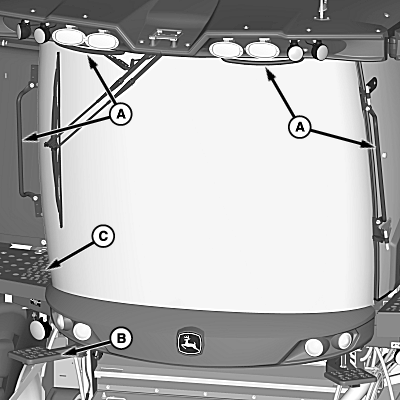

H119679-UN-20OCT16
A - Handrails
B - Step
C - Landing
Raise feeder house completely and lower safety stop on the feeder house lift cylinder.Close cab door before using handrail.
Do not manually move wiper arm. This could cause damage to wiper mechanism.
Use ladder and landing to clean left side of cab.
Access feeder house by using step on the left-hand side.
Use handrails (A) on either side of cab and at top of cab.
Stand on the raised feeder house to clean front cab window and service headlights or wiper.
Use step (B) and landing (C) to clean right side of the cab.
|
OUO6075,000439D-19-20161215 |
