Break-In Service After 100 Hours (Tier 2/Stage II and Tier 3/Stage IIIA)

H81205
H81205-UN-15JUN04

H95377
H95377-UN-16FEB10

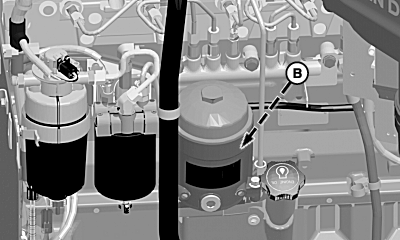

Style A

H95420
H95420-UN-09MAR10

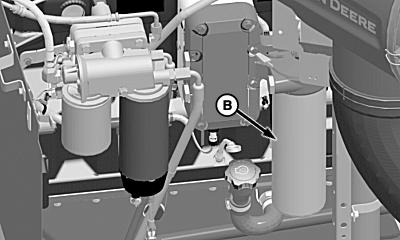

Style B

A - Drain

B - Oil Filter

Drain crankcase oil by opening drain (A) and close drain once oil is drained.

Remove and retain cap and dispose of the oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with the proper amount of engine oil. See Fuel and Lubricants section for oil recommendations. See Specifications section for oil capacity.

OUO6075,00043A0-19-20161219
