Break-In Service After 400 Hours (Final Tier 4/Stage IV)

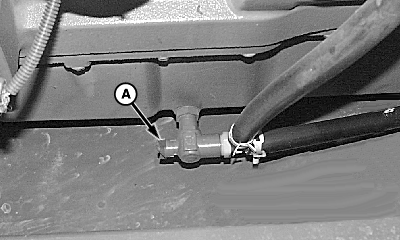

H81205
H81205-UN-15JUN04

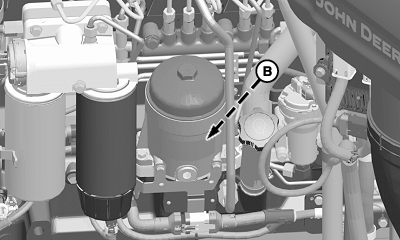

H95310
H95310-UN-11FEB10

Style A

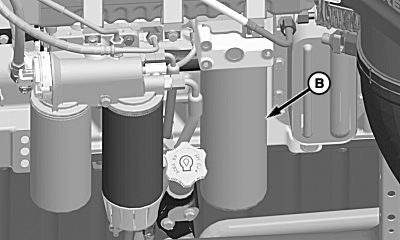

H95397
H95397-UN-17FEB10

Style B

A - Drain

B - Oil Filter

Drain crankcase oil by opening drain (A) and close drain once oil is drained.

Remove and retain cap and dispose of the oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with the proper amount of engine oil. See Fuel and Lubricants section for oil recommendations. See Specifications section for oil capacity.

OUO6075,00043A1-19-20161219
