Stopping the Engine

1.

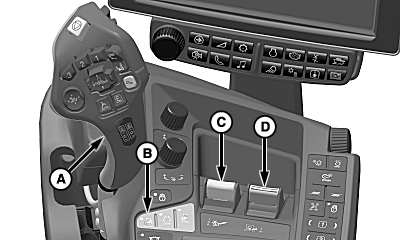

   H119918-UN-02NOV16

   A - Multi-Function Lever

   B - Low Engine Speed Switch

   C - Header Engage Switch

   D - Separator Engage Switch

   Lower header or reel completely to ground.

---




2. Move multi-function lever (A) to neutral position.

3. Press low engine speed switch (B).

4. Shut OFF header engage switch (C) and separator engage switch (D).

5. Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

   Before stopping an engine that was operating at working load, idle engine two—three minutes to allow turbocharger to cool.

6. Set park brake and remove key before leaving machine.

   Turn key switch OFF.

   Final Tier 4/Stage IV: Do not disconnect battery for at least 90 seconds after machine is shut OFF. Selective Catalyst Reduction (SCR) system automatically purges lines of Diesel Exhaust Fluid (DEF) during this time, immediately after machine is shut OFF. If adequate time is not allowed for lines to be purged, any fluid remaining in lines can crystallize and plug lines. In freezing weather, fluid will freeze and possibly burst lines.
