Coolant Heater

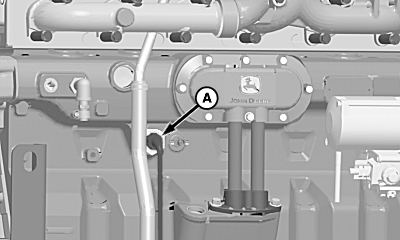

H95379
H95379-UN-16FEB10

Tier 2/Stage II and Tier 3/Stage IIIA (Style A) (Front Side)

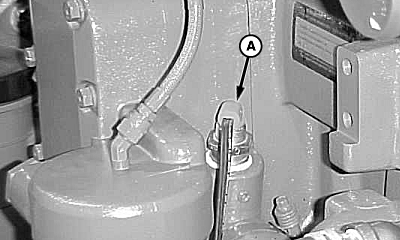

H71689
H71689-UN-18APR02

Tier 2/Stage II and Tier 3/Stage IIIA (Style B) (Rear Side)

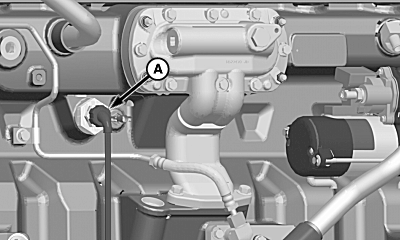

H95324
H95324-UN-11FEB10

Final Tier 4/Stage IV (Style A) (Front Side)

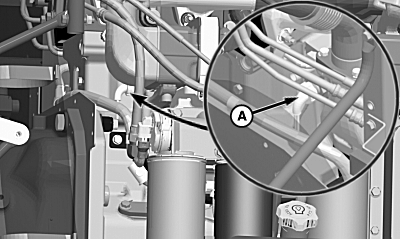

H95424
H95424-UN-19FEB10

Final Tier 4/Stage IV (Style B) (Rear Side)

TS210
TS210-UN-23AUG88

A - Coolant Heater

To avoid shock or hazardous operation, always use a three wire heavy-duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m (25 ft)) equipped with three connectors. If a two to three contact adapter is used at the wall receptacle, always connect green wire to a good ground.

Before connecting heater to the power source, be sure that element is immersed in coolant. NEVER energize the heater in the air. Doing so can cause the element sheath to burst causing personal injury.

Coolant heater (A) mounts in freeze plug opening (front side or rear side of engine). By warming engine coolant, the heater reduces oil drag, eases starting, and shortens warm up time.

Coolant Heater Types

  • 1000 W (110 V)
  • 1000 W (220 V) (Export Machines)

OUO6075,00043A8-19-20161011
