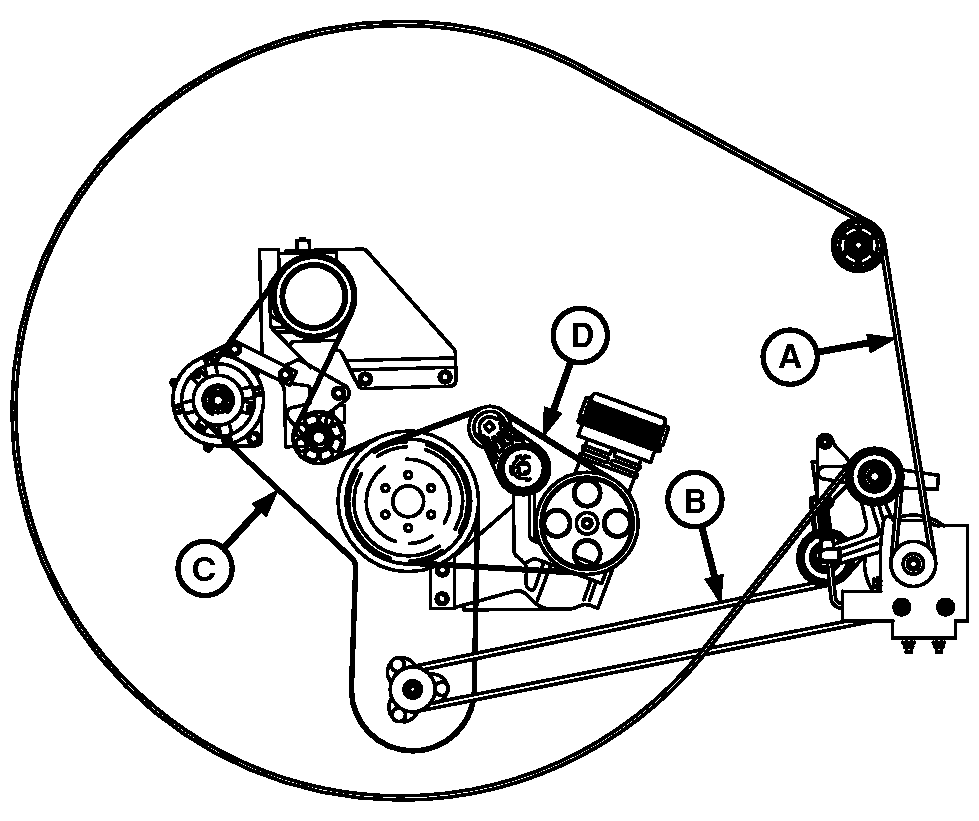

Engine Belt—Routing (Tier 2/Stage II and Tier 3/Stage IIIA)

H112798-UN-17FEB15

A - Rotary Screen Drive Belt, Screen Side

B - Rotary Screen Drive Belt, Engine Side

C - Cooling Fan, Air Conditioner, Compressor Belt

D - Air Compressor Belt (If Equipped)
