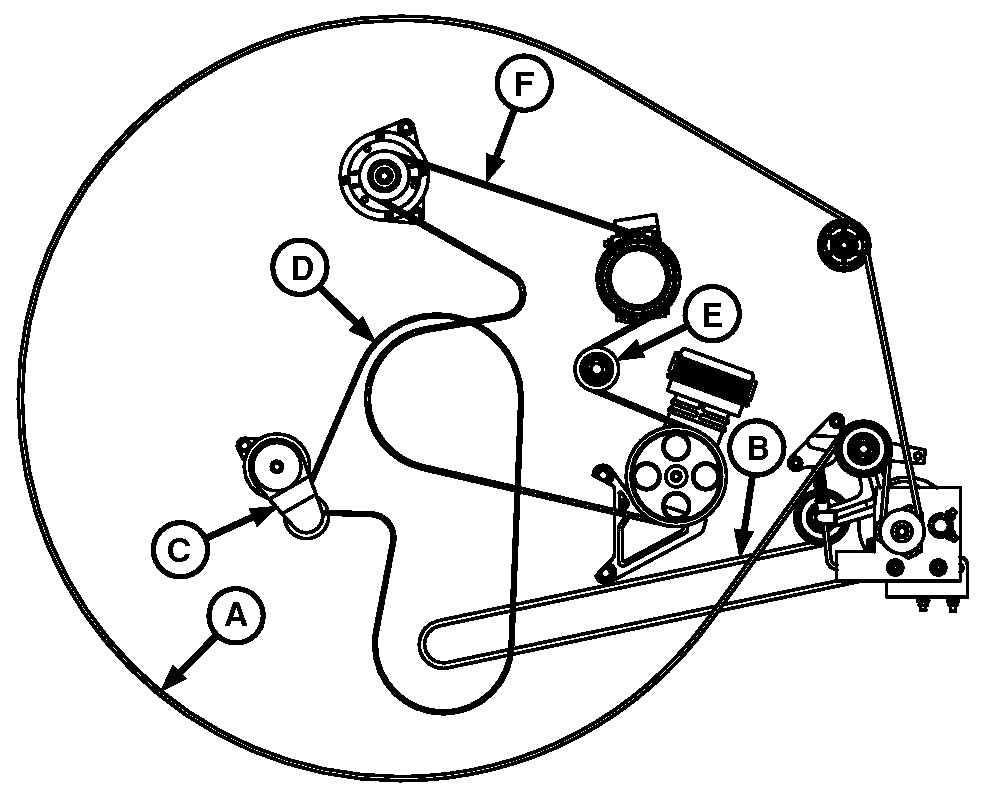

Engine Belt—Routing (Tier 2/Stage II and Tier 3/Stage IIIA)

H112799-UN-17FEB15

A - Belt, Rotary Screen (Driven)

B - Belt, Rotary Screen (Drive)

C - Tensioner, Fan

D - Belt, Fan

E - Tensioner, Accessory

F - Belt, Accessory and Air Compressor (If Equipped)
