Engine Accessory/Fan Drive/Air Compressor (If Equipped) Belt—Replacing (Tier 2/Stage II and Tier 3/Stage IIIA)

H118329
H118329-UN-04MAY16

A - Lockout Pin

B - Handrail

C - Separator Access Cover

Shut OFF engine, set park brake and remove key.

Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

H106845
H106845-UN-08FEB13

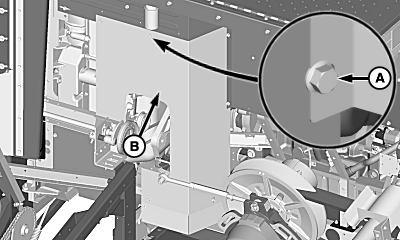

Front Side Of Engine

A - Cap Screw (7 used)

B - Shield

Remove cap screws (A) and shield (B).

H95701
H95701-UN-15MAR10

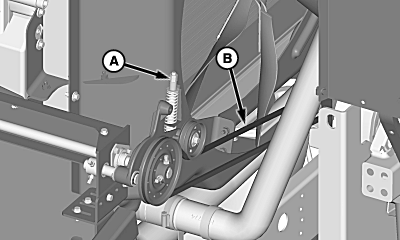

A - Nuts

B - Rotary Screen Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

H106847
H106847-UN-08FEB13

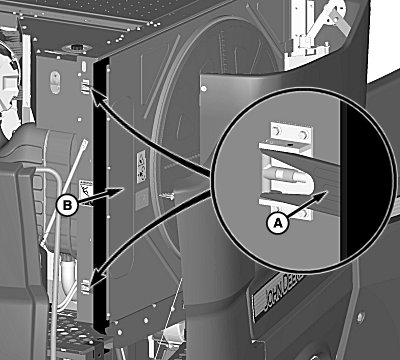

A - Latches

B - Rotary Screen Door

Pull latches (A) and open rotary screen door (B).

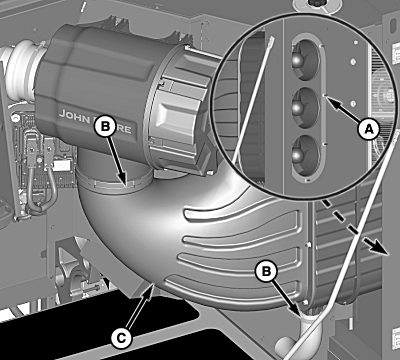

H95647
H95647-UN-10MAR10

A - Nut (7 used)

B - Clamps

C - Air Duct

Remove nuts (A) and loosen hose clamps (B).

Lay air duct (C) out of the way.

H95648
H95648-UN-10MAR10

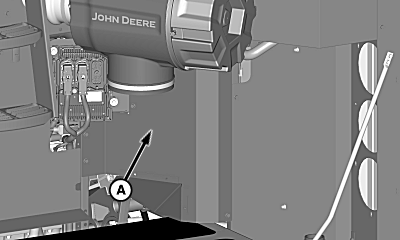

A - Shield

Remove shield (A).

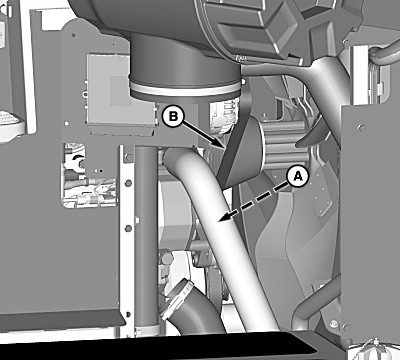

H95699
H95699-UN-15MAR10

H95702
H95702-UN-15MAR10

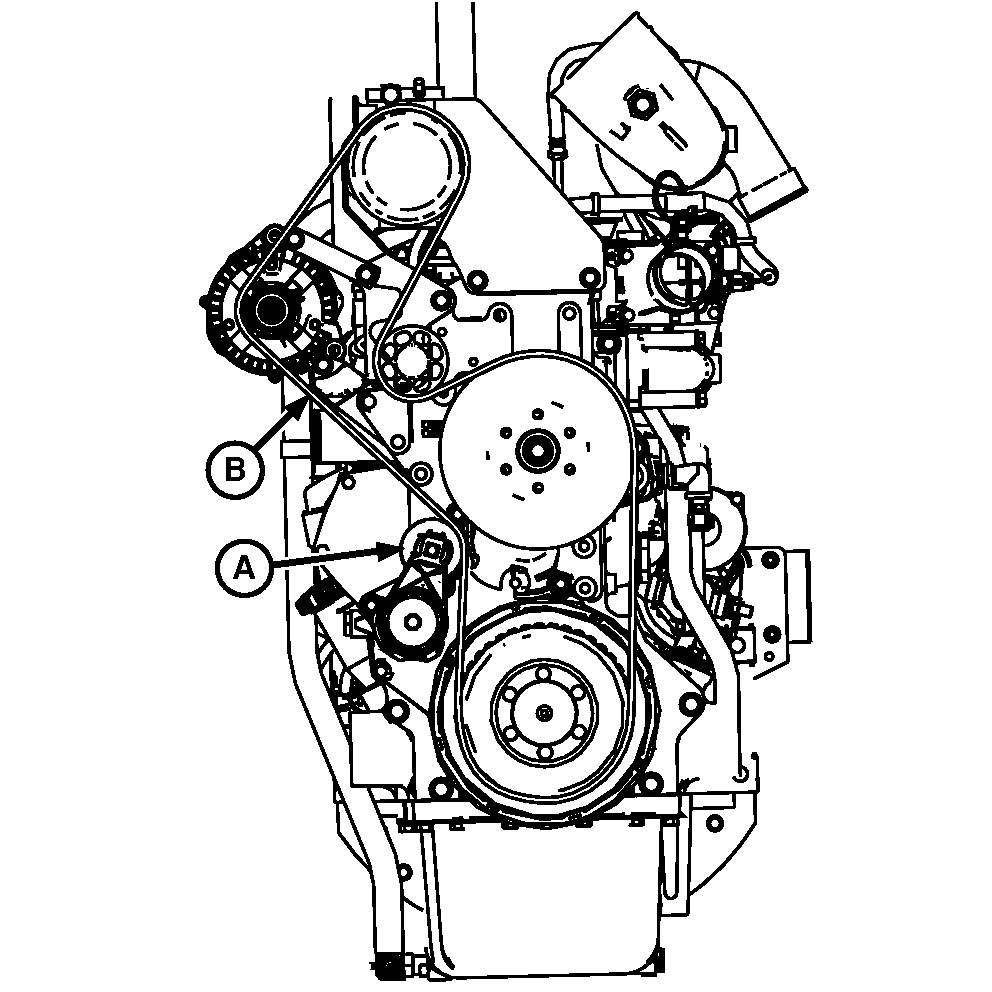

Engine Accessory/Fan Drive Belt Without Air Compressor

H113079
H113079-UN-02MAR15

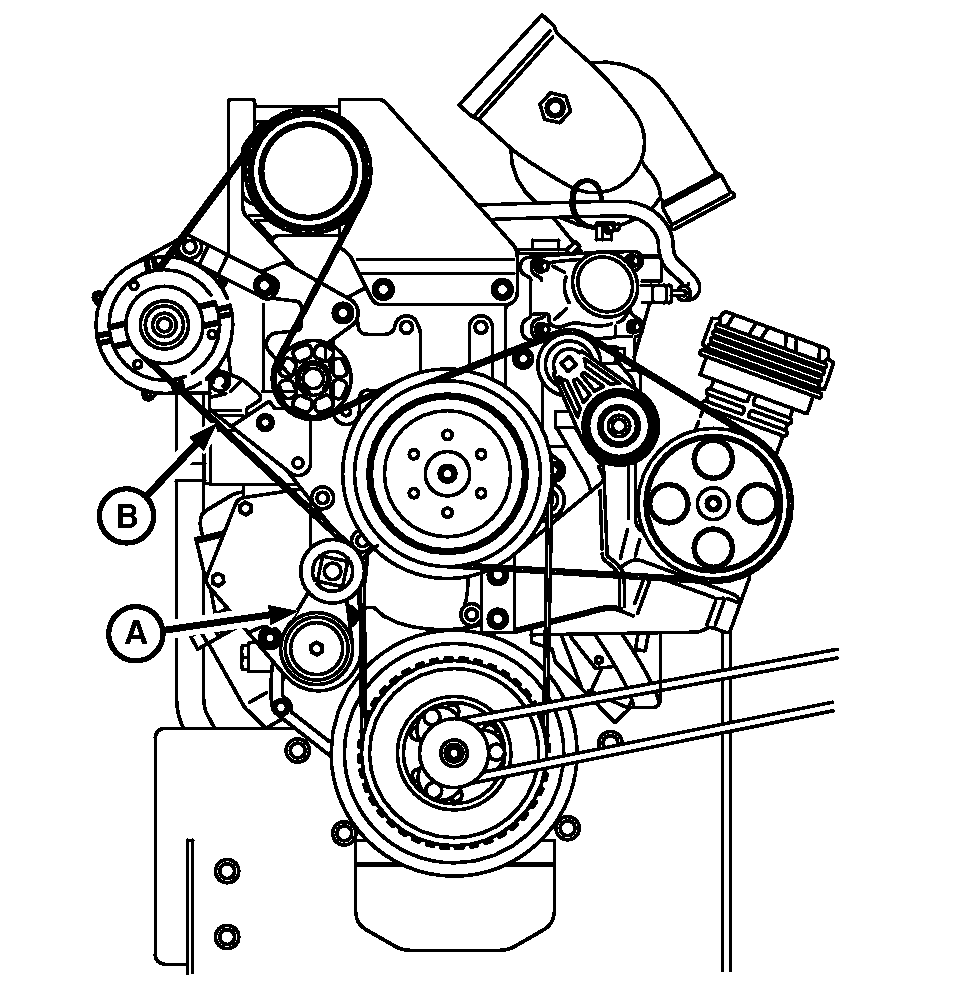

Engine Accessory/Fan Drive Belt With Air Compressor

A - Tensioner Arm

B - Engine Accessory/Fan Drive Belt

Use breaker bar to relieve belt tension from the tensioner arm (A).

Remove belt (B) and work belt over fan blades to remove.

Install replacement belt over the fan blades.

Use breaker bar to relieve tension from the tensioner arm to install replacement belt.

H95701
H95701-UN-15MAR10

A - Nuts

B - Rotary Screen Drive Belt

Install rotary screen drive belt (B).

Tighten nuts (A) until the washer is positioned between the end of gauge and bottom of step.

Install previously removed shield (front side).

Close separator access cover and lower handrail.

Install previously removed shield (rear side) and air duct.

Close and latch the rotary screen door.
