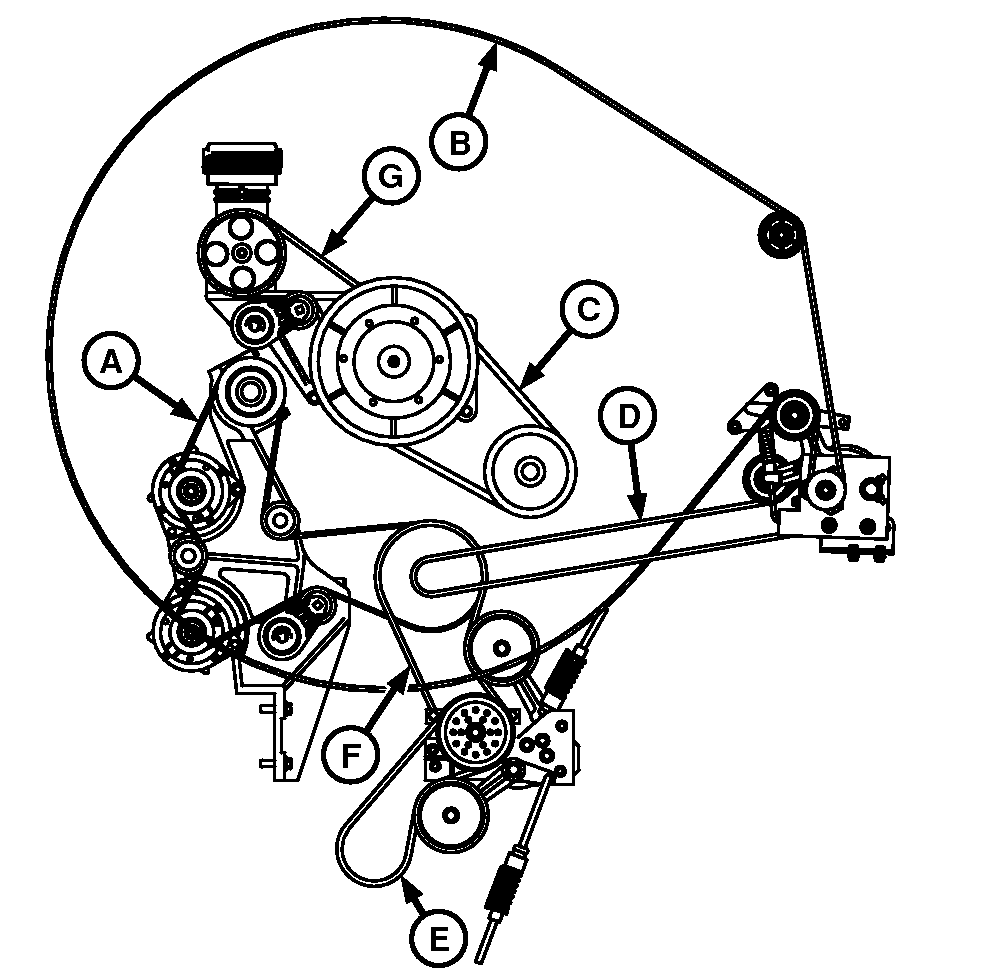

Engine Belt—Routing (Final Tier 4/Stage IV)

H112962-UN-25FEB15

A - Air Conditioner Compressor, Alternator Belt

B - Rotary Screen Drive Belt, Screen Side

C - Variable Speed Fan Belt

D - Rotary Screen Drive Belt, Engine Side

E - Vacuum Fan Driven Belt, Fan Side

F - Vacuum Fan Drive Belt, Engine Side

G - Air Compressor Belt (If Equipped)
