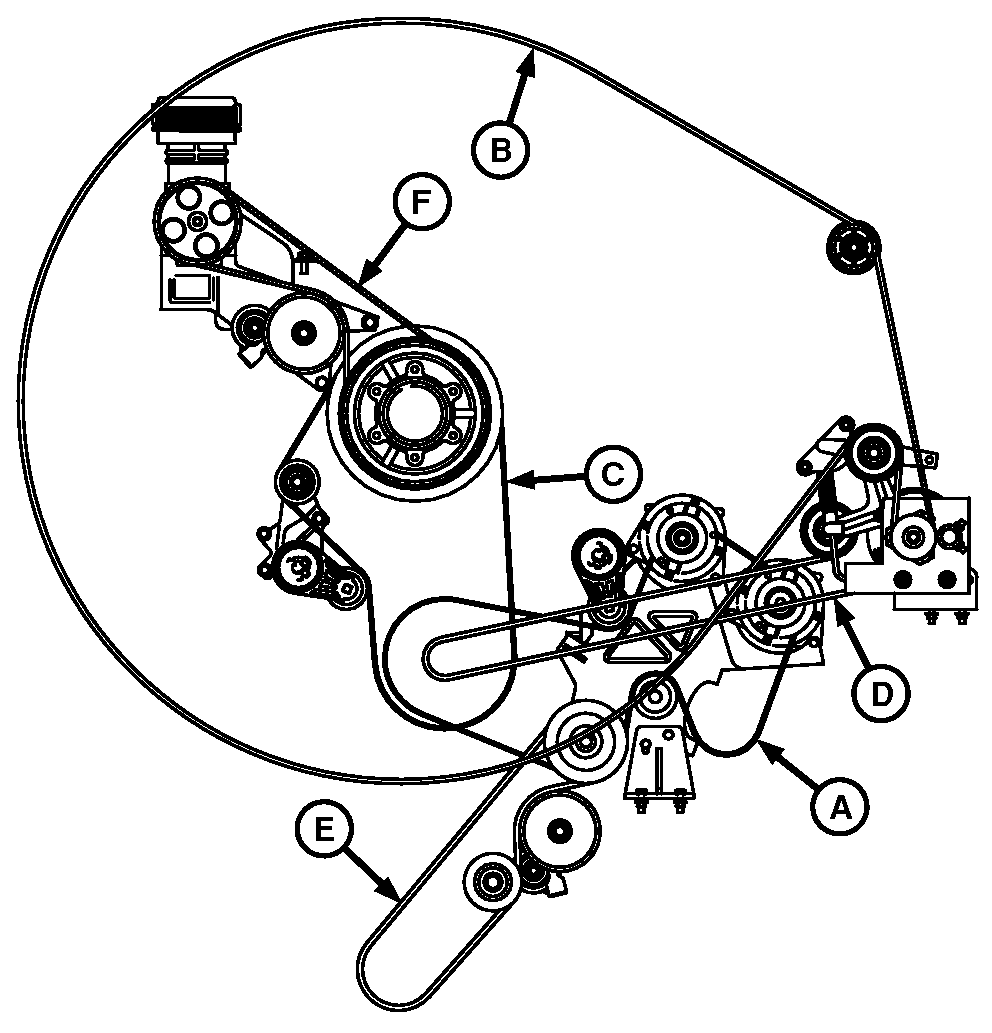

Engine Belt—Routing (Final Tier 4/Stage IV)

H112859-UN-17FEB15

A - Air Conditioner Compressor, Alternator Belt

B - Rotary Screen Drive Belt, Screen Side

C - Fan Drive Belt

D - Rotary Screen Drive Belt, Engine Side

E - Vacuum Fan Drive Belt

F - Air Compressor Belt (If Equipped)
