Rotary Screen Drive Belt—Replacing (Final Tier 4/Stage IV)

H118329
H118329-UN-04MAY16

A - Lockout Pin

B - Handrail

C - Separator Access Cover

Shut OFF engine, set park brake and remove key.

Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

H95657
H95657-UN-10MAR10

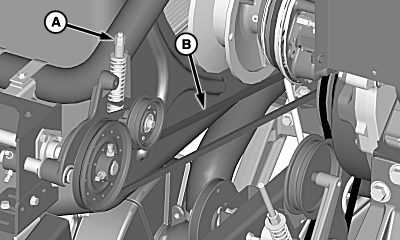

A - Nuts

B - Rotary Screen Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

Install replacement belt and tighten nuts until washer is positioned between end of gauge and bottom of step.

Close separator access cover and lower handrail.
