Rotary Screen Drive Belt—Replacing (Final Tier 4/Stage IV)

H118329
H118329-UN-04MAY16

A - Lockout Pin

B - Handrail

C - Separator Access Cover

Shut OFF engine, set park brake and remove key.

Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

H106845
H106845-UN-08FEB13

Front Side Of Engine

A - Cap Screws (7 Used)

B - Shield

Remove cap screws (A) and shield (B).

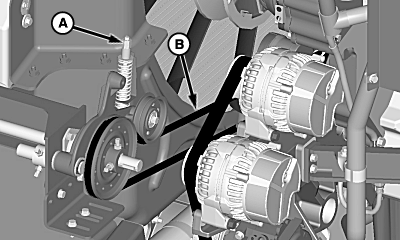

H95665
H95665-UN-11MAR10

A - Nuts

B - Rotary Screen Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

Install replacement belt and tighten nuts until washer is positioned between end of gauge and bottom of step.

Install previously removed shield, close separator access cover, and lower handrail.
