Vacuum Fan Drive Belt—Replacing (Final Tier 4/Stage IV)

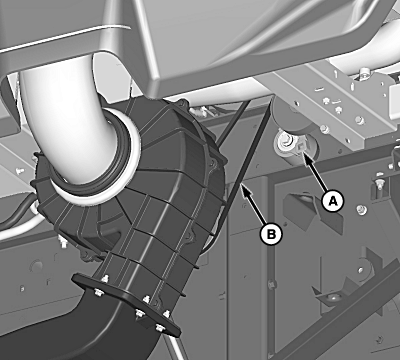

H99550-UN-06JAN11

A - Tensioner Arm

B - Vacuum Fan Drive Belt

Use breaker bar to relieve belt tension from the tensioner arm (A).

Remove the vacuum fan drive belt (B) located below the radiator.

Install the replacement vacuum fan drive belt.

Use breaker bar to relieve tension from the tensioner arm to install belt.
