Vacuum Fan Driven Belt—Replacing (Final Tier 4/Stage IV)

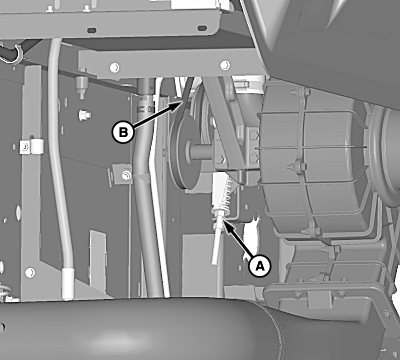

H95667
H95667-UN-11MAR10

A - Nuts

B - Vacuum Fan Driven Belt

Shut OFF engine, set park brake and remove key.

Loosen nuts (A) and remove vacuum fan driven belt (B) located below radiator.

Install replacement vacuum fan driven belt.

Tighten nuts until the washer is positioned between the end of gauge and bottom of step.
