Air Compressor Belt (If Equipped)—Replacing (Final Tier 4/Stage IV)

  1. H118329
    H118329-UN-04MAY16

    A - Lockout Pin

    B - Handrail

    C - Separator Access Cover

    Shut OFF engine, set park brake and remove key.

    Pull lockout pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).


  2. H106845
    H106845-UN-08FEB13

    Front Side Of Engine

    A - Cap Screws (7 Used)

    B - Shield

    Remove cap screws (A) and shield (B).


  3. H95665
    H95665-UN-11MAR10

    A - Nuts

    B - Rotary Screen Drive Belt

    Loosen nuts (A) and remove rotary screen drive belt (B).


  4. H106847
    H106847-UN-08FEB13

    A - Latches

    B - Rotary Screen Door

    Pull latches (A) and open rotary screen door (B).


  5. H110003
    H110003-UN-18MAR14

    A - Nuts (7 Used)

    B - Clamps

    C - Air Duct

    Remove nuts (A) and loosen hose clamps (B).


  6. Lay air duct (C) out of the way.

  7. H95648
    H95648-UN-10MAR10

    A - Shield

    Remove shield (A).

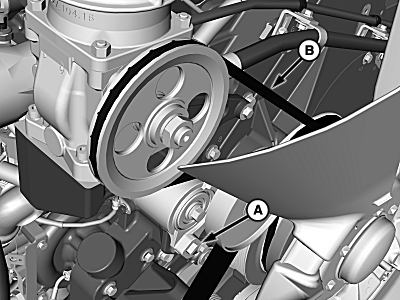

  8. H113078
    H113078-UN-25FEB15

    A - Tensioner Arm

    B - Belt

    Use breaker bar to relieve belt tension from the tensioner arm (A).


  9. Remove belt (B) and work belt over fan blades to remove.

  10. Install replacement belt over the fan blades.

  11. Use breaker bar to relieve tension from the tensioner arm to install replacement belt.

  12. H95665
    H95665-UN-11MAR10

    A - Nuts

    B - Rotary Screen Drive Belt

    Install rotary screen drive belt (B).


  13. Tighten nuts (A) until the washer is positioned between the end of gauge and bottom of step.

  14. Install previously removed shield (front side).

  15. Close separator access cover and lower handrail.

  16. Install previously removed shield (rear side) and air duct.

  17. Close and latch the rotary screen door.

OUO6075,00043C2-19-20161221
