Water Separator

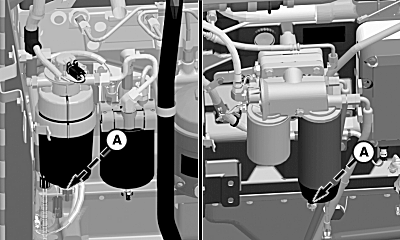

H119923-UN-02NOV16

Tier 2/Stage II and Tier 3/Stage IIIA (Style A / Style B)

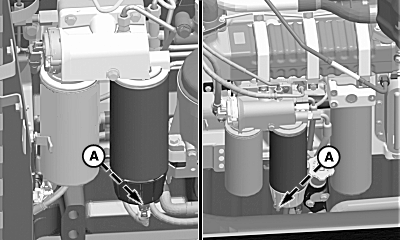

H119924-UN-02NOV16

Final Tier 4/Stage IV (Style A / Style B)

A - Drain

Check water separator (A) for water or when diagnostic trouble code is generated.

Open drain to remove water form separator. See Maintenance—As Required (Engine Fluids and Filters) section for further information.

Remove and retain water separator.
