Transmission Oil (S760 and S770 Non-ProDrive™ Machines)

H115752
H115752-UN-02SEP15

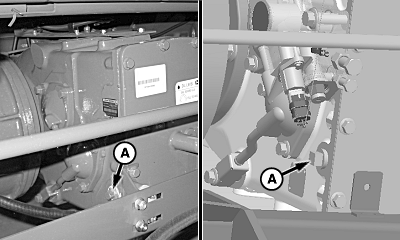

Mechanical Shift / Push-Button Shift

A - Plug

Remove plug (A) and check oil level.

Add oil as needed to within 12 mm (1/2 in) of bottom of hole.

OUO6075,000443F-19-20170117
