Batteries

  1. H115755
    H115755-UN-02SEP15

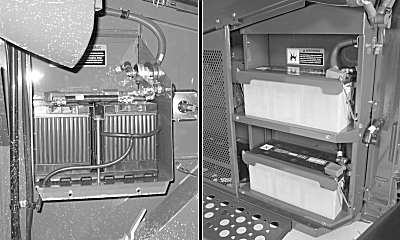

    Style A / Style B

    Batteries are on the right-hand side or the left-hand side depending on the machine model.

    Clean top of batteries and check level in each cell.


  2. Fill to bottom of the filler neck with distilled water if needed.

  3. Clean battery posts, cables, and tighten connections as needed.

OUO6075,0004442-19-20170117
