Service Interval Chart—Every 2000 Hours

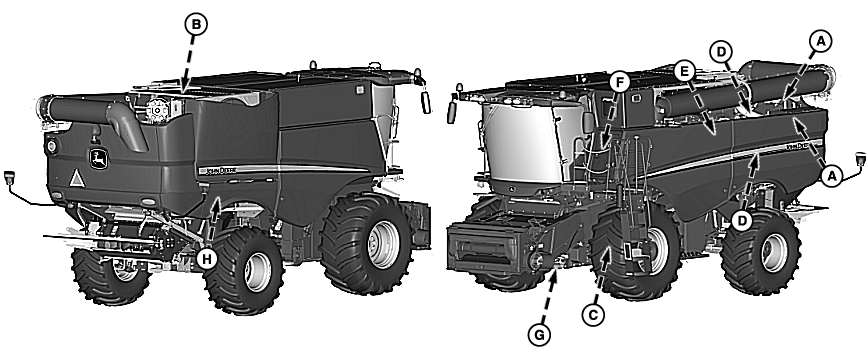

H119642-UN-13OCT16
SCHEDULED coolant change interval 2 years or 2000 hours if John Deere Cool-Gard™ II or Cool-Gard™ II PG is not used.
|
Legend |
Service |
Every 2000 Hours |
|---|---|---|
|
A |
Change Hydraulic/Hydrostatic Reservoir Oil |
● |
|
B |
Check Engine Valve Backlash1 |
● |
|
C |
Check Final Drives Oil (both sides) |
● |
|
D |
Change Main Engine Gear Case Oil (Non-ProDrive™ Machines) |
● |
|
E |
Change Separator Drive Oil |
● |
|
F |
Change Primary Countershaft Gear Case Oil (Fixed Speed and Variable Speed Feeder House) |
● |
|
G |
Change Transmission Oil (Mechanical Shift and Push-Button Shift Transmission) |
● |
|
H |
Overshot Beater Gear Case (Optional) (S770, S780, and S790 Machines) |
● |
|
Cool-Gard is a trademark of Deere & Company ProDrive is a trademark of Deere & Company 1 See your John Deere dealer for service. |
OUO6075,0004459-19-20170328 |
