Hydraulic/Hydrostatic Reservoir Oil

1.

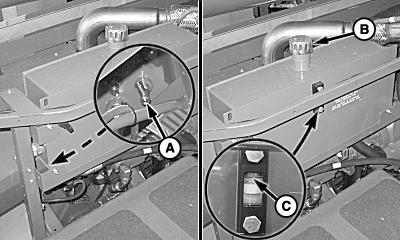

   H115812-UN-04SEP15

   Style A

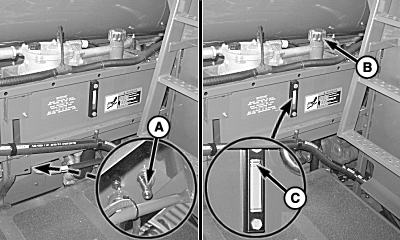

   H115811-UN-04SEP15

   Style B

   A - Drain Valve

   B - Cap

   C - Sight Glass

   Clean hydraulic reservoir area to prevent system contamination. See Specifications section for oil capacity.

   Open drain valve (A) to drain oil. Close valve once oil is drained.

---




2. Remove cap (B) and fill hydraulic reservoir until oil level is at top of sight glass (C) with the feeder house fully lowered.
