Separator Drive Oil

1.

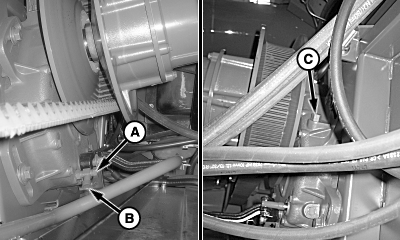

   H115816-UN-04SEP15

   A - Cap

   B - Drain Valve

   C - Dipstick

   Remove cap (A) and attach hose to drain valve (B).

---




2. Open valve to drain.

3. Refill at dipstick (C) as needed.
