Transmission Oil (Mechanical Shift and Push-Button Shift Transmission)

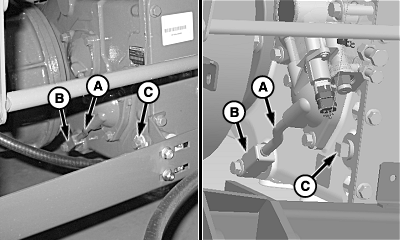

  1. H115818
    H115818-UN-04SEP15

    Mechanical Shift / Push-Button Shift

    A - Tube

    B - Block

    C - Check Plug

    Slide tube (A) out of block (B).


  2. Remove block to drain.

  3. Remove check plug (C) and refill to within 12 mm (1/2 in) of hole.

OUO6075,0004460-19-20161222
