Overshot Beater Gear Case Oil (Optional) (S770, S780, and S790 Machines)

H115819
H115819-UN-04SEP15

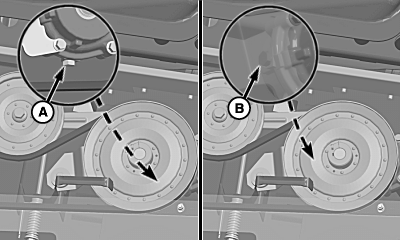

A - Plug

B - Plug

Drain at plug (A) and refill at plug (B). Oil level must be level with the plug hole on the side of the gear case.

OUO6075,0004461-19-20170328
